Swage Toggle, 7/16" Wire, 19mm Pin

Stock Code:
RF1506-1412
Price:
$209.39

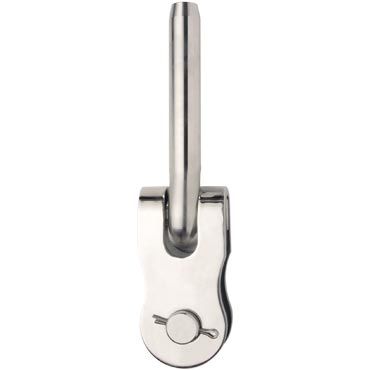

Swage Toggle 7/16" Wire – 19mm Pin 316 Stainless Steel

The Swage Toggle is manufactured from 316 marine grade stainless steel, providing excellent corrosion resistance for marine, outdoor, and coastal environments. Designed to suit 7/16" stainless steel wire rope, this fitting features a 19mm toggle pin, allowing secure articulation between the wire assembly and mounting point.

Installed using a hydraulic swaging tool, the terminal forms a permanent and high-strength connection to the wire rope. The toggle design allows movement at the connection point, helping align the load and reduce stress on the wire rope and fittings.

Key Features

  • Wire Size: Suits 7/16" wire rope

  • Pin Size: 19mm

  • Material: 316 marine grade stainless steel

  • Type: Swage toggle terminal

  • Designed for hydraulic swaging onto stainless steel wire rope

  • Toggle action allows movement to align loads correctly

  • Excellent corrosion resistance for marine and outdoor environments

  • Suitable for marine rigging, structural cable systems, and heavy-duty applications
