BreezeWire 50x10 Drill POST BP 972 P 316

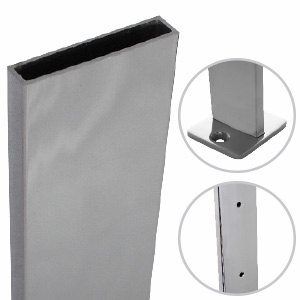

BreezeWire 50 x 10mm Pre-Drilled Intermediate Balustrade Post with Base Plate 972mm 316 Stainless Steel – Polished
The BreezeWire 50 x 10mm Pre-Drilled Intermediate Balustrade Post is a premium 316 marine grade stainless steel spreader post designed for modern wire balustrade systems. Standing 972mm high, this slimline post features 11 pre-drilled Ø5mm holes at 81mm centres, providing accurate wire alignment and reducing wire deflection on longer balustrade runs. The welded base plate ensures a strong and secure fixing to timber or concrete surfaces, while the polished finish delivers a clean architectural appearance.
This post is designed as an intermediate (spreader) post only and is not intended as a structural start or end post. It is commonly installed between structural posts to support the wire rope and minimise deflection over longer spans.
Specifications
Product Type: Intermediate Wire Balustrade Post
Series: BreezeWire
Post Size: 50 x 10mm
Post Height: 972mm
Mounting Type: Base Plate
Hole Configuration: 11 × Pre-Drilled Ø5mm Holes
Hole Centres: 81mm
Material: 316 Marine Grade Stainless Steel
Finish: Polished
Suitable Wire Rope: 3.2mm Stainless Steel Wire Rope
Applications
Stainless steel wire balustrade systems
Decks and balconies
Verandahs and patios
Stairways
Residential balustrades
Commercial balustrades
Coastal and marine installations
Features
Manufactured from 316 marine grade stainless steel
Slimline 50 x 10mm profile for a modern architectural appearance
11 pre-drilled Ø5mm holes spaced at 81mm centres
Designed to reduce wire deflection on longer wire runs
Heavy-duty welded base plate for secure installation
Polished architectural finish
Excellent corrosion resistance for marine and coastal environments
Compatible with BreezeWire balustrade components
Designed as an intermediate (spreader) post between structural start and end posts
Suitable for residential and commercial balustrade systems
