Block BBB40 Fiddle

Stock Code:
S404-101-12R
Price:
$81.93

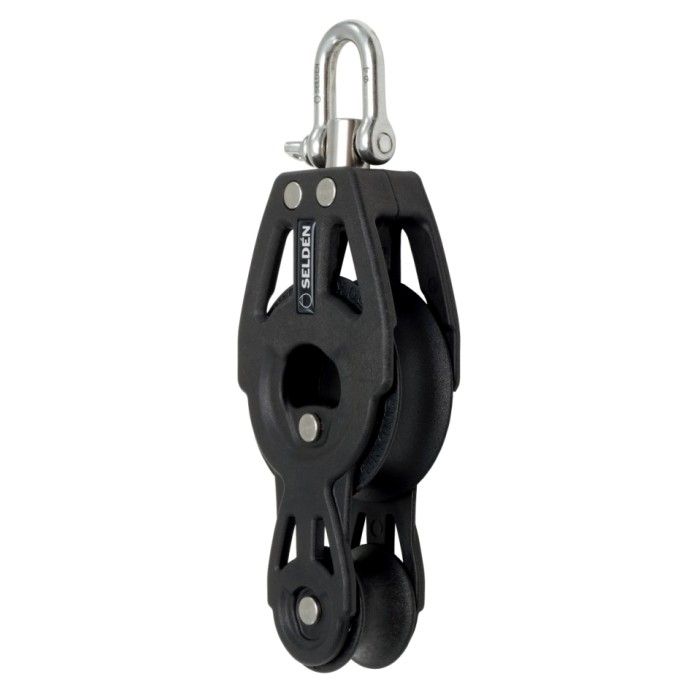

Selden Block BBB40 Fiddle – S404-101-12R

The Selden BBB40 Fiddle Block is a compact ball-bearing pulley designed for smooth rope handling and efficient multi-purchase systems in marine rigging applications. Featuring a 40 mm primary sheave and a smaller secondary sheave, the fiddle configuration increases mechanical advantage, making it ideal for control line and trimming systems.

Constructed with glass fibre reinforced composite cheeks, stainless steel ball bearing races and stainless steel load components, the BBB40 block delivers extremely low friction and excellent durability in marine environments. The design allows the shackle to be positioned at 0° or 90° for flexible alignment in different rigging setups.

Key Features

  • Part Number: S404-101-12R

  • Brand: Selden

  • Block Type: BBB40 Ball Bearing Block

  • Configuration: Fiddle block

  • Sheave Size: 40 mm primary sheave with secondary sheave

  • Maximum Rope Size: 10 mm

  • Safe Working Load: 250 kg

  • Breaking Load: 500 kg

  • Fiddle configuration for increased mechanical advantage

  • Ball-bearing sheaves for smooth, low-friction operation

  • Glass fibre reinforced composite cheeks to reduce line jamming

  • Stainless steel load components for strength and durability

A compact and dependable Selden block designed to provide smooth rope control and efficient line handling in marine rigging systems.
